Investigation of causes of damage from fracture surfaces

Investigations of mechanisms causing damages in metals

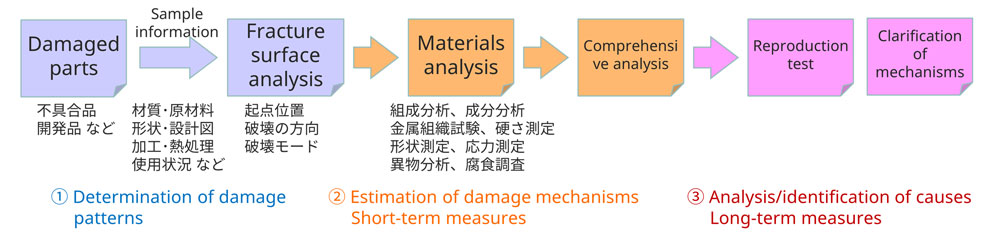

Fractographic analysis is the first step in identifying the cause of failure of a metal parts. This identifies the location of the crack and determines the mode of failure. Further investigation and analysis will help to determine the mechanism of failure, which, combined with reproducible testing, will lead to permanent countermeasures.

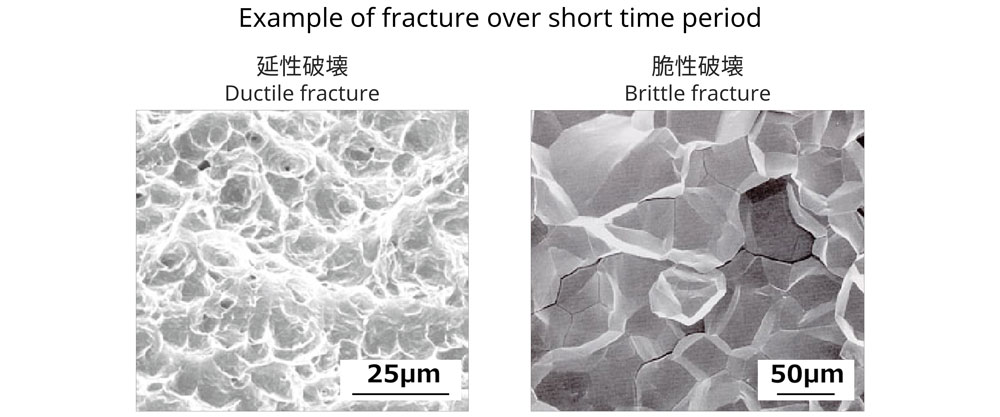

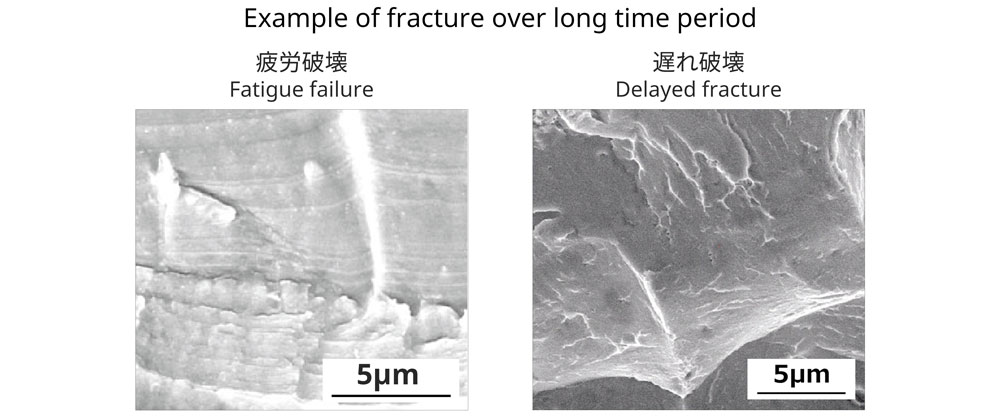

Examples of destruction patterns of materials

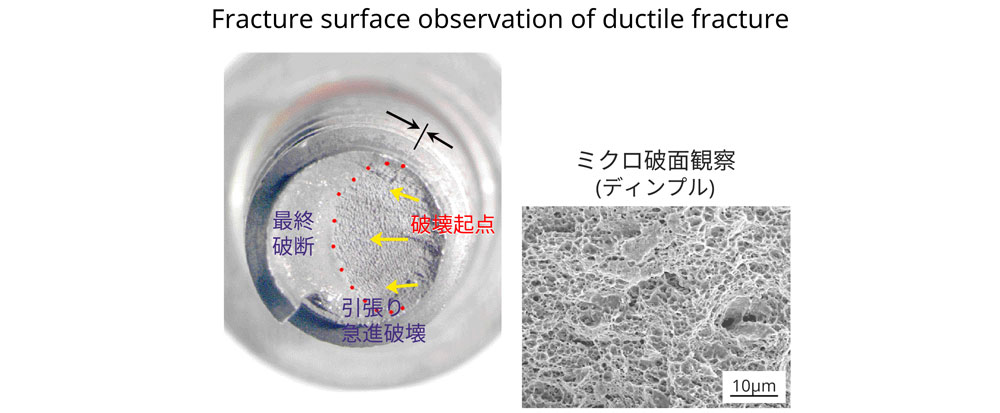

Analyzes the fracture surface of a damaged metal parts from crack initiation to failure.
